JINFLEX

CHEM
JINFLEX-CHEM

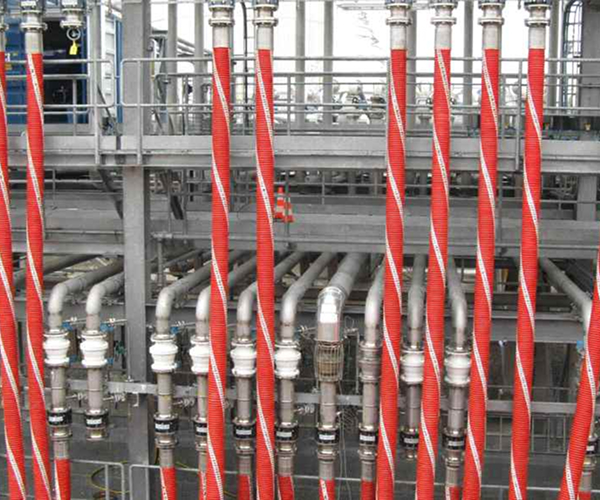

RED HOSE

Applications

Jinflex-chem Red hoses are designed for those chemicals and acids which do not affect the lining and the stainless steel inner wire. There are different types depending on pressure and application namely: Jinflex-chem Red hoses are used in tank truck, railcar, plant transfer, heavy duty marine operations and ships and barges loading unloading.

VIEW MORE

CHEM
JINFLEX-CHEM

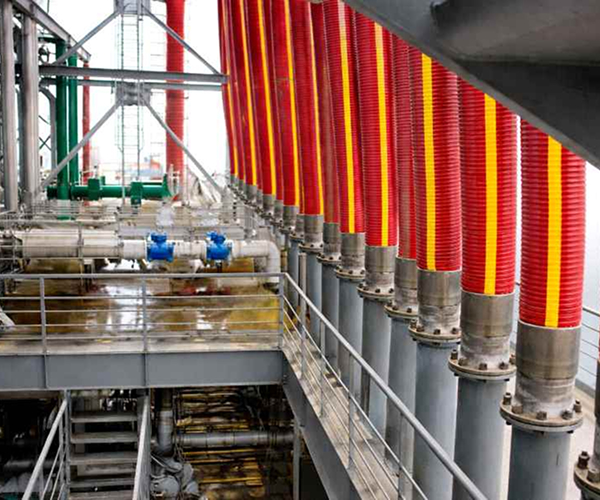

HIGH TEMP HOSE

Applications

Jinflex-Chem High Temp Hose uses a non-asbestos multi-layer thermal barrier to provide outstanding fire and heat resistance. Even after 30 minutes of direct flame exposure, the hose remains structurally intact and retains its contents. In extreme fire conditions, it does not burst; instead, it allows gradual burn-off to prevent secondary hazards. Its performance has been verified through Jinflex’s internal testing and independent testing by the UK Fire Research Station and the Swedish Fire Service.

VIEW MORE

CHEM
JINFLEX-CHEM
GREEN HOSE

Applications

Jinflex-Chem Green hoses are designed for those chemicals and acids which do not affect the lining and the stainless steel inner wire. There are different types depending on pressure and application namely: Jinflex-Chem Green hoses duty are used in tank truck,railcar, plant transfer, heavy duty marine operations and ships and barges loading unloading.

VIEW MORE

VAPOR
JINFLEX-VAPOR
YELLOW HOSE

Applications

Jinflex-Vapor Yellow hoses are designed specifically for chemicals as well as for hydrocarbon vapor recovery service on ships, barges and in marine terminals. It can also be used to recover vapor in tank and railcar applications.

VIEW MORE

CHEM
JINFLEX-CHEM

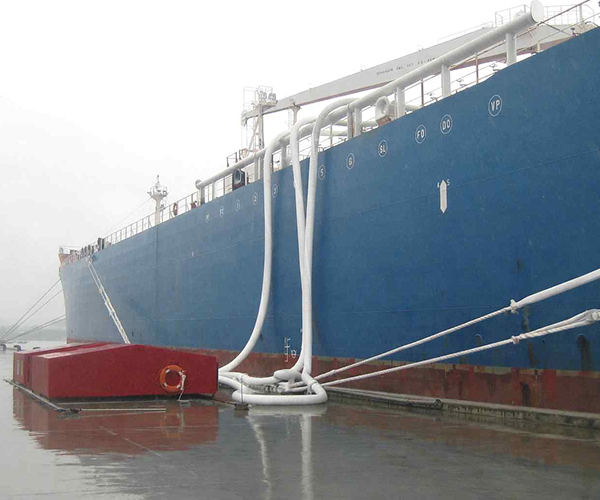

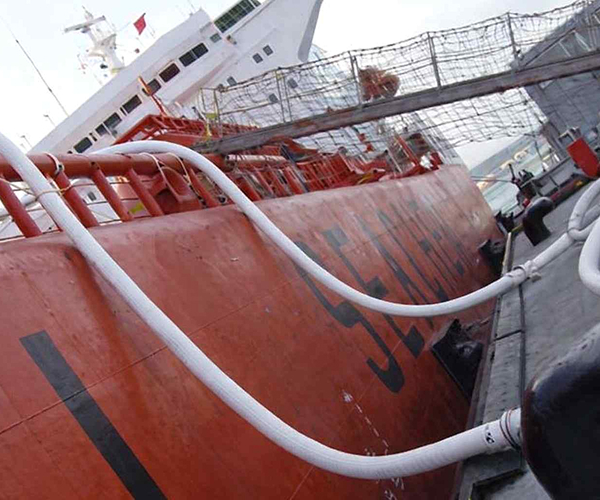

WHITE HOSE

Applications

Jinflex-Chem White hoses are designed for Submersible use in chemicals which do not affect the lining and cover and the stainless steel inner and out wire. There are different types, depending on pressure and application namely: Jinflex-Chem White hoses duty are used in tank truck,railcar, plant transfer, heavy duty marine operations and ships and barges loading unloading.

VIEW MORE

OIL
JINFLEX-OIL
BLUE HOSE

Applications

Jinflex-Oil Blue hoses are designed for conveying hydrocarbons, solvents, 100% aromatics, etc. There are different types depending on pressure and application namely: Jinflex-Oil Blue hoses are used in tank truck,railcar, plant transfer, heavy duty marine operations and ships and barges loading unloading.

VIEW MORE

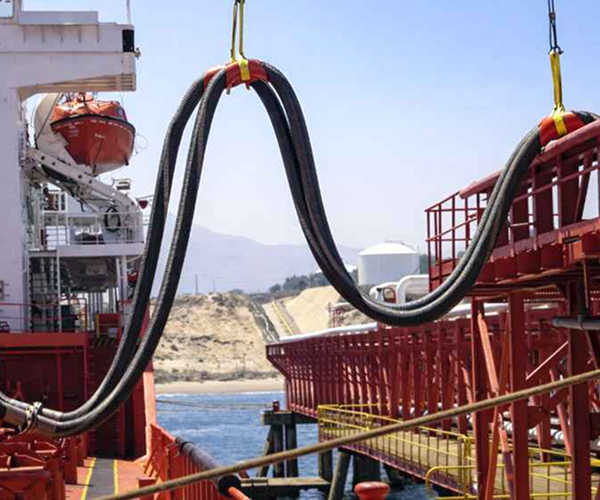

CHEM
JINFLEX-CHEM

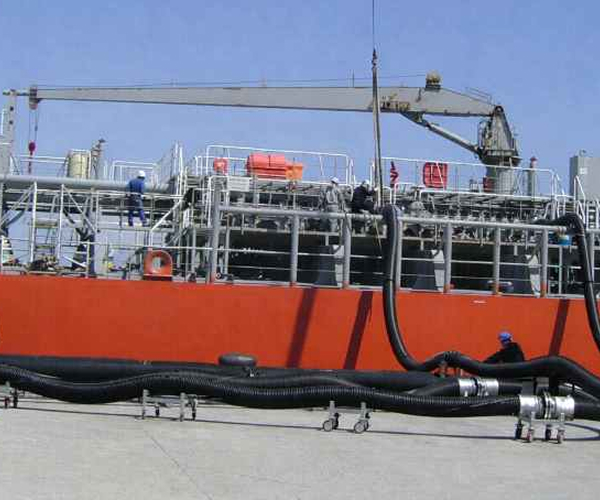

BLACK HOSE

Applications

Jinflex-Chem Black hoses are designed for those chemicals which do not affect the polypropylene lining and the polypropylene coated steel inner wire. There are different types depending on pressure and application. Jinflex-Chem Black hoses are used in tank truck and railcar, plant transfer, heavy duty marine operation and ships and barges loading and unloading.

VIEW MORE

ETC

METAL HOSE

Annular Type

Type	Annular Type(one pitch)	Diameter	25A ~ 300A
Material	STS304, STS316, STS316L, STS321	Temperature range	-200 ~ 800°C

LPG

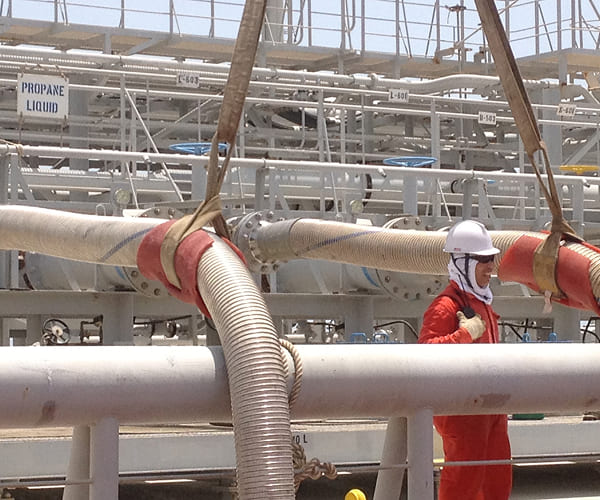

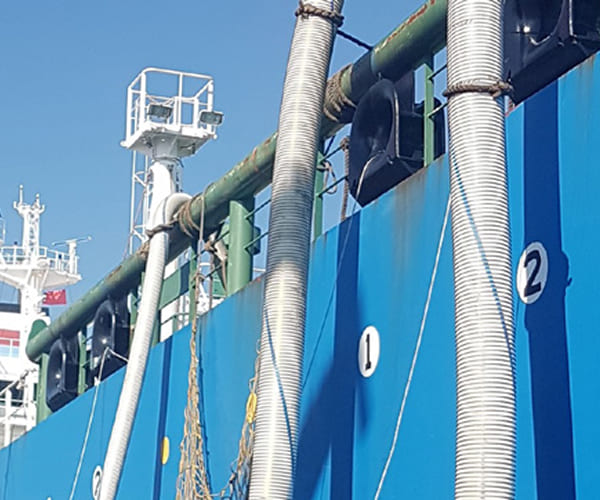

JINFLEX-LPG
WHITE HOSE

Applications

Jinflex-LPG White hose is especially designed for use with fully refrigerated conveyants down to -50°C on ship, barges and in marine terminals. This application includes the following mediums: Ammonia, Acetaldehyde, Butadiene, Butane, Propane, Butylene, Dimethylamide, Ethylamine, Ethyl Chloride, Methyl Acethylene, Methyl, Bromide Propane, Propadiene, Propylene, Vinyl Chloride and Refrigerant Gases. Jinflex-LPG White is also suitable for Liquid Ethylene at -105 °C, Liquid Ethane at -88°C.

VIEW MORE

LNG
JINFLEX-LNG
WHITE HOSE

Applications

Jinflex-LNG White hose is especially designed for use with fully refrigerated conveyance down to -196 °C such as LNG rail, railcar, in-plant, and ship-to-shore applications.

VIEW MORE

LNG STS
JINFLEX-LNG STS
WHITE HOSE

Applications

Jinflex-LNG STS White hose is especially designed for offshore use in rough conditions, such as ship to ship operations where fully refrigerated conveyance like LNG will be off-loaded. Jinflex-LNG STS White hoses can be used in different operations such as side by side and tandem off-loaded. Jinflex-LNG STS White hoses are also suitable as Vapor Return line in combination with other transfer systems like loading arms and flexible pipelines.

VIEW MORE

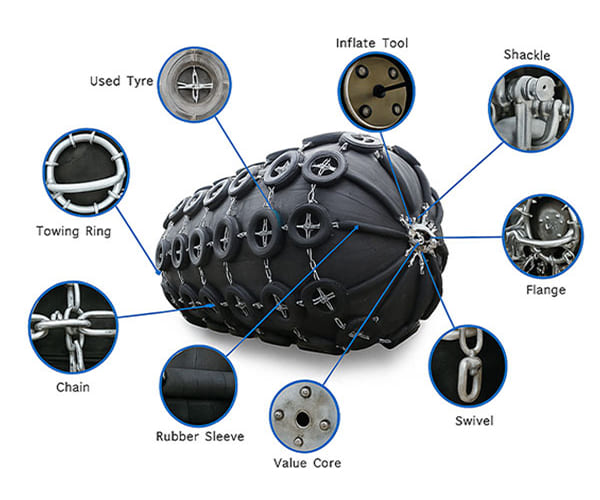

PNEUMATIC
RUBBER FENDERS

Applications

Jinflex Pneumatic Rubber fender is a leading anti-collision device for marine applications in the world today. This fender is made of synthetic-cord-reinforced rubber sheets with compressed air inside to enable it to float on the water and work as a protective medium. Therefore, pneumatic rubber fenders serve as a critical protective medium against collision when ship-to-ship (STS) transfer operations and ship-to-dock (STD) berthing and mooring operations.

VIEW MORE

FLANGE TYPE

COUPLING	PICTURE	TYPE	SIZE	MATERIAL
FLOATING FLANGE		ANSI JIS DIN TTMA	1" To 10"	Carbon Steel Stainless Steel
FIXED FLANGE		ANSI JIS DIN TTMA	1" To 10"	Carbon Steel Stainless Steel

THREADED TYPE

COUPLING	PICTURE	TYPE	SIZE	MATERIAL
Male threaded nipple NPT or BSP		-	1" To 10"	Carbon Steel / Stainless Steel Aluminum / Brass
Female threaded swive nut coupling NPT or BSP		-	1" To 10"	Carbon Steel / Stainless Steel Aluminum / Brass

QUICK COUPLING TYPE

COUPLING	TYPE	SIZE	MATERIAL
PART A	Male adapt + Female NPT	1/2'', 3/4", 1'', 1-1/4", 1-1/2'', 2'', 2-1/2", 3" To 8"	Stainless Steel / Aluminum
PART B	Female Coupler + Male NPT	1/2'', 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" To 8"	Stainless Steel / Aluminum
PART C	Female Coupler + Male NPT	1/2'', 3/4", 1'', 1-1/4", 1-1/2", 2", 2-1/2", 3" To 8"	Stainless Steel / Aluminum
PART D	Female Coupler + Female NPT	1/2'', 3/4'', 1", 1-1/4", 1-1/2'', 2", 2-1/2", 3" To 8"	Stainless Steel / Aluminum
PART E	Male Adapt + Hose Shank	1/2'', 3/4", 1", 1-1/4", 1-1/2'', 2", 2-1/2", 3" To 8"	Stainless Steel / Aluminum
PART F	Male Adapt + Male NPT	1/2'', 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" To 8"	Stainless Steel / Aluminum
PART DC	Dust Cap	1/2'', 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" To 8"	Stainless Steel / Aluminum
PART DP	Dust Plug	1/2'', 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" To 8"	Stainless Steel / Aluminum

HOSE COUPLINGS

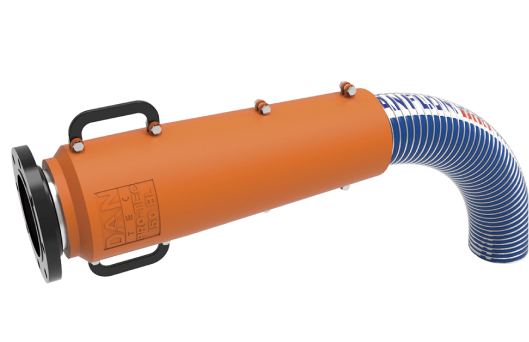

Dan Pro~Tec
Bend Limiter

Composite hose is perfect for the transfer of liquid products as its light weight, flexible and easy to handle.

With safety and asset protection in mind the revolutionary Dan Pro~Tec Bend Limiter has been designed to eliminate the one weakness composite hose has which is over flexing and bending at its weakest point.

Designed to still allow the hose to naturally flex the BL eliminates the over bending of the hose at the relatively soft and pliable hose wall and the hard connection area.

Manufactured from polyurethane in two halves and supplied complete with handles, bolt kit and assembly instructions, the BL fixes to the outside of the composite hose on the first string of the tank or the ship side, adding support to the hose and eliminating the concern of over flexing and bending.

If over flexing and bending is a concern for your composite hose, choose the Dan Pro~Tec BL and extend the life of your hoses. The BL is a one-time purchase and can be used on numerous hoses and applications.

HOSE COUPLINGS
HOSEBUN

Designed to properly suspend hose.

When Hosebun product is used, the composite hose maximum bending radius is protected, and your hose is kept from kinking.

The Hosebun is, by far, the foremost method to suspend hose in a permanent or temporary, semi-rigid position. How many times have you seen hose being hoisted temporarily, ineffectively, or unsafely? Hosebun products offer efficient, effective, and safe hose suspension designed for your unique needs. The Hosebun is used for cradling hose within various industrial and commercial sites and is available in 1” to 12” and is the perfect for composite hose and other industrial hoses.

HOSE COUPLINGS
HOSE HANDLING SLING

In the case of Jinflex 'Heavy Duty' loading and unloading hoses (ship to shore applications), the use of at least one wide support sling is recommended for hoses with a maximum length of 6mtr and an inner diameter between 100 m/ m and 300 m/m. For longer hoses, at least two wide support slings per hose must be used. For diameters above 200 mm, the use of a so-called “saddle” is required. All hose handling slings can be delivered with certificate.

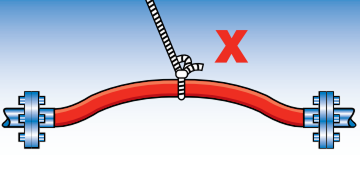

Never use rope sling as severe hose damage will be the result.

AUTHENTICATION

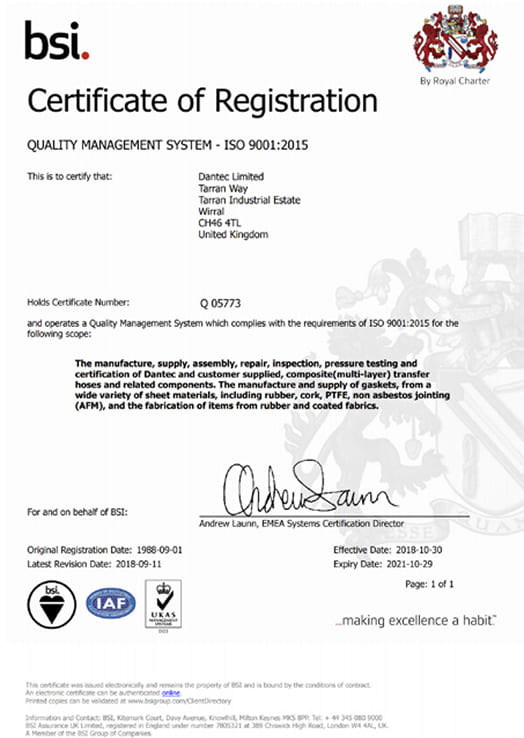

BSI Certificate of Registration

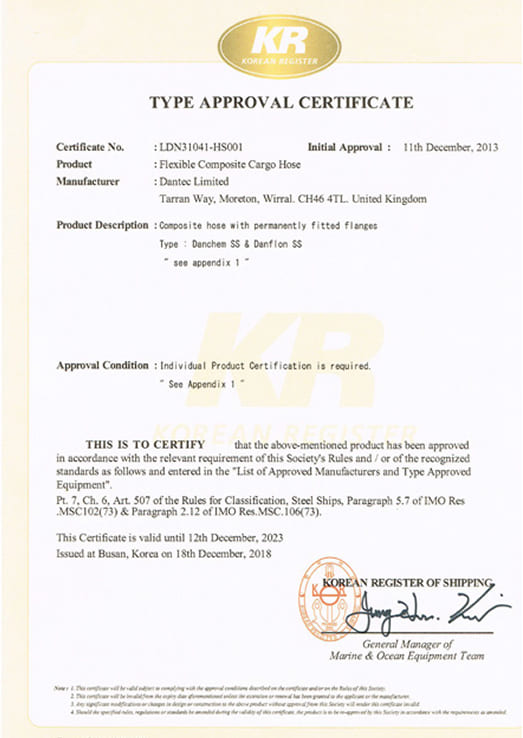

Korean Register of Shipping DCSS & DFSS Type Approval Certificate

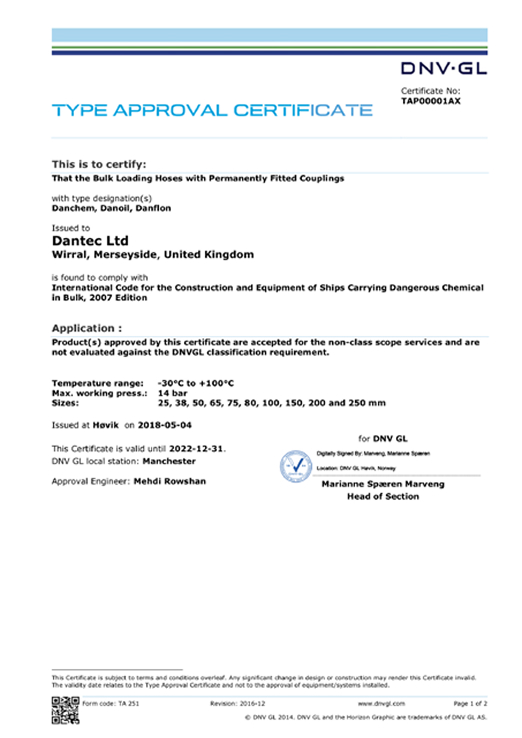

DNV Certificate

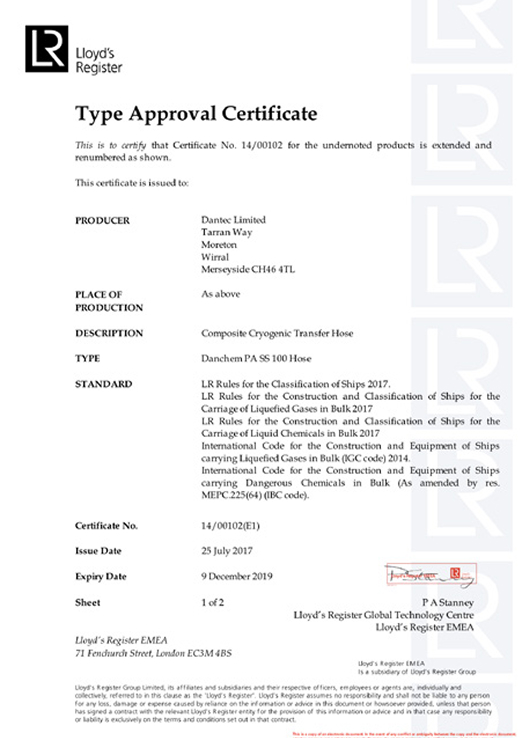

Lloyds Register-Type Approval Certificate

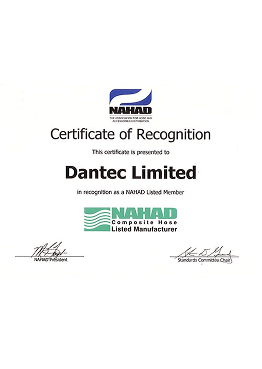

NAHAD Certificate of Recognition

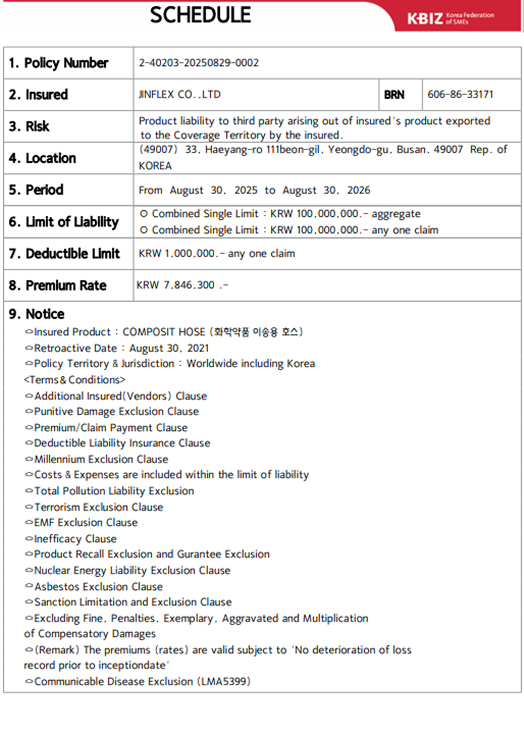

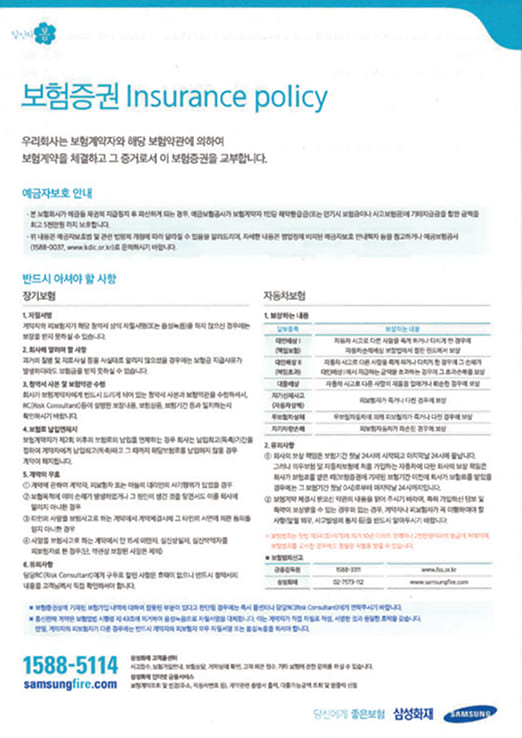

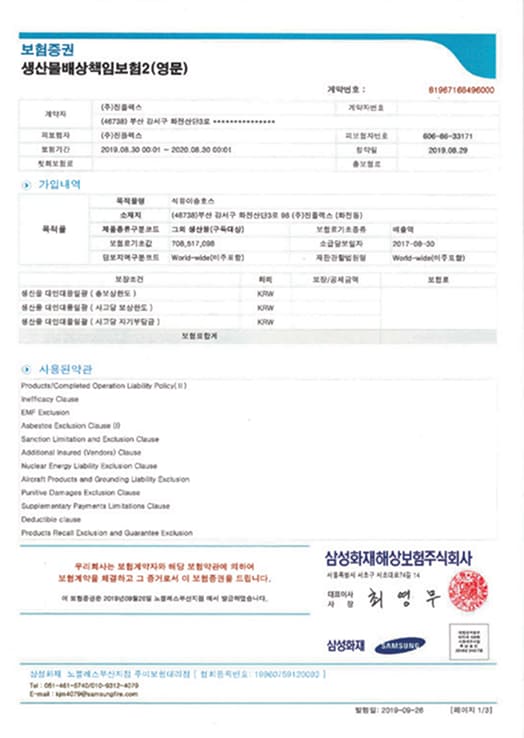

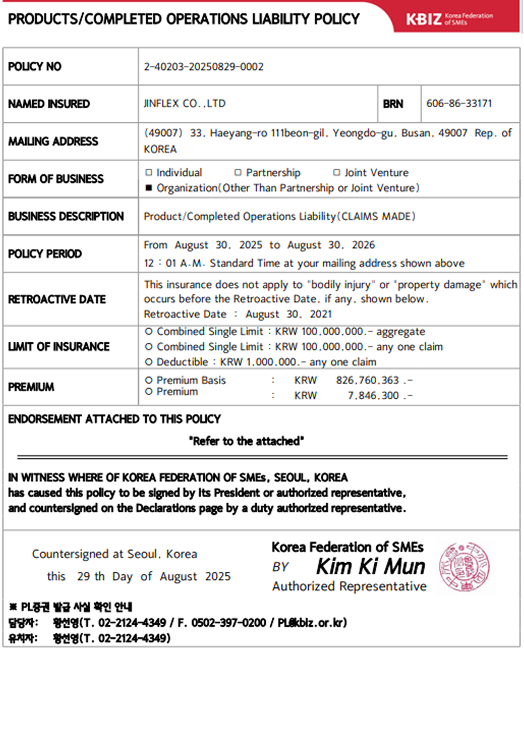

INSURANCE POLICY

Chemical Resistance List

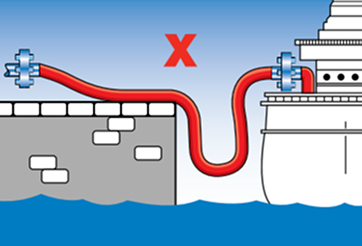

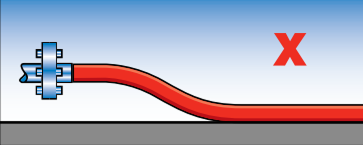

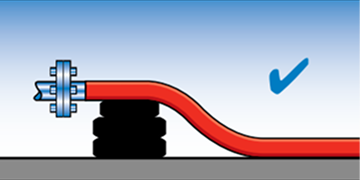

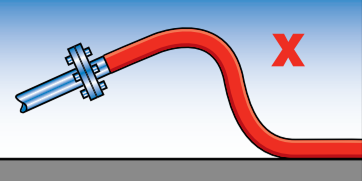

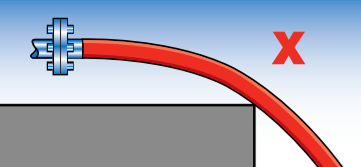

Code Guide Hose Handling Guide

Medium EN	CAS-No.	Green	Red	Blue	White	Black
Aminoethanol-2 (Ethanolamine)	141-43-5	A	A	A	A	A
1,1,2,2-Tetrachloroethane	79-34-5	X	A	X	X	X
1,1,2-Trichloroethane	79-00-5	I	A	I	I	I
1,1-Dibromoethane	557-91-5	A	A	X	A	A
1,1-Dichloroethene (Vinylidene chloride)	75-35-4	I	A	I	I	I
1,2,3-Trichloropropane	96-18-4	I	A	I	I	I
1,2-Butanediol	584-03-2	A	A	A	A	A
1,2-Dibromoethane (Ethylene dibromide)	106-93-4	A	A	X	A	A
1,2-Dichloroethane (Ethylene dichloride)	107-06-2	I	A	I	I	I
1,2-Dichloroethene (Acetylene dichloride)	540-59-0	A	A	A	A	A
1,2-Dichloropropane (Propylene dichloride)	78-87-5	A	A	I	A	A
1,3,5-Trimethylbenzene (Mesitylene)	108-67-8	A	A	A	A	A
1,3-Butanediol	107-88-0	A	A	A	A	A
1,3-Dichloropropene	542-75-6	I	A	I	I	I
1,4-Butanediol	110-63-4	A	A	A	A	A
1,4-Dioxane	123-91-1	A	A	A	A	A
1,2-Dichloropropane	78-87-5	I	A	I	I	I
1,3-Dichloropropane	542-75-6	I	A	I	I	I
1-Chlorobutane (1-Butyl chloride)	109-69-3	I	A	I	I	I
1-Decyl alcohol (Decyl alcohol)	112-30-1	Tech	A	A	A	A	A
1-Heptanol	111-70-6	Tech	A	A	A	A	A
1-Heptene	592-76-7	Tech	A	A	A	A	A
1-Hexanol	111-27-3	Tech	A	A	A	A	A
1-Nitropropane	108-03-2	Tech	I	A	I	I	I
1-Octanol	111-87-5	Tech	A	A	A	A	A
1-Pentene	109-67-1	Tech	I	A	I	I	I
1-Propanol (Propyl alcohol)	71-23-8	Tech	A	A	A	A	A
1-Tridecanol	112-70-9	Tech	A	A	A	A	A
2,3-Butanediol	513-85-9	Tech	A	A	A	A	A
2-Butoxyethanol acetate	112-07-2		I	A	I	I	I
2-Butoxyethanol acetate (Ethylene glycol monobutyl ether acetate)	112-07-2		A	A	A	A	A
2-Ethoxyethanol (Ethylene Glycol Ethyl Ether)	110-80-5		I	A	X	I	I
2-Ethoxyethyl acetate	111-15-9	Tech	A	A	A	A	A
2-Ethoxyethyl acetate (Ethylglycol acetate)	111-15-9		A	A	A	A	A
2-Ethyl hexylamine	104-75-6		A	A	I	A	A
2-Ethyl-1-butanol	97-95-0	Tech	A	A	A	A	A
2-Ethyl-2-hexenal (2-Ethyl-3-propylacrolein)	645-62-5		I	A	I	I	I
2-Ethylhexyl acrylate	103-11-7	Tech	A	A	X	A	A
2-Heptanol	543-49-7	Tech	A	A	A	A	A
2-Hydroxyethyl acrylate	818-61-1		I	A	I	I	I
2-Methyl-2,4-pentanediol (Hexylene glycol)	107-41-5	Tech	A	A	A	A	A
2-Methyl-2-pentene	625-27-4		I	A	I	I	I
2-Methylbutyraldehyde	96-17-3		X	A	X	X	X
2-Methylpyridine (2-Picoline)	109-06-8		I	A	I	I	I
2-Nitropropane	79-46-9	Tech	I	A	I	I	I
2-Nitrotoluene	88-72-2		X	A	X	X	X
3,5,5 Trimethylhexanal	5435-64-3	Tech	X	A	X	X	X
3-Heptanone	589-82-2	Tech	A	A	A	A	A
3-Hexanone (Ethyl propyl ketone)	589-38-8	Tech	I	A	I	I	I
3-Nitrotoluene	99-08-1	Tech	X	A	X	X	X
4,4'-Methane diphenyl diisocyanate	101-68-8		X	A	X	X	X
Acetaldehyde	75-07-0	Tech	I	A	X	I	I
Acetic acid	64-19-7	60	A	A	X	A	A
Acetic acid	64-19-7	20	A	A	X	A	A
Acetic acid	64-19-7	GLACIAL	A	A	X	A	A
Acetic acid propyl ester (Propyl acetate)	109-60-4	Tech	I	A	I	I	I
Acetic anhydride	108-24-7	Tech	A	A	X	A	A
Acetone	67-64-1	Tech	A	A	A	A	A
Acetonitrile	75-05-8	Tech	A	A	A	A	A
Acetonitrile (Methyl cyanide)	75-05-8	Tech	A	A	A	A	A
Acetophenone	98-86-2		A	A	A	A	A
Acetylacetone	123-54-6	Tech	A	A	A	A	A
Acrolein	107-02-8	Tech	A	A	A	A	A
Acrylic acid	79-10-7		A	A	X	A	A
Acrylic acid methyl ester (Methyl acrylate)	96-33-3	Tech	A	A	A	A	A
Acrylonitrile	107-13-1	Tech	A	A	A	A	A
Adipic acid	124-04-9	Sat	A	A	A	A	A
Adiponitrile	111-69-3	Tech	A	A	A	A	A
Allyl alcohol	107-18-6	Tech	A	A	A	A	A
Allyl chloride	107-05-1	Tech	I	I	X	I	I
alpha-Methylstyrene	98-83-9	Tech	A	A	A	A	A
Alum aq (Aluminium potassium sulfate aq)	7784-24-9	Sat	A	A	A	A	A
Aluminium chloride aq *	7446-70-0	Sat	X	X	X	X	X
Aluminium nitrate aq	7784-27-2	Sat	A	A	X	A	A
Aminoethyl ethanolamine	111-41-1		A	A	X	A	A
Aminoethylethanolamine (N-(2-Hydroxyethyl)ethylenediamine	111-41-1	Tech	I	A	I	I	I
Ammonium chloride aq	12125-02-9	Sat	I	I	X	I	I
Ammonium hydroxide (Ammonia solution)	1336-21-6		A	A	X	A	A
Ammonium salts aq	1336-21-6	Sat	A	A	X	A	A
Aniline	62-53-3	Tech	A	A	X	A	A
Animal fat		Tech	A	A	A	A	A
Anisole	100-66-3	Tech	I	A	X	I	I
Antimony pentachloride	7647-18-9	ALL	A	A	X	A	A
Antimony trichloride solution	10025-91-9	ALL	A	A	X	A	A
Arsenic acid	1303-28-2	80	A	A	X	A	A
Aviation Gasoline (AVGAS)		Tech	X	A	X	X	X
Benzaldehyde	100-52-7		I	A	X	I	I
Benzene	71-43-2		I	A	X	I	I
Benzene sulfonic acid	98-11-3	Tech	I	A	X	I	I
Benzoic acid solution	65-85-0	Tech	A	A	X	A	A
Benzoyl chloride	98-88-4	Tech	A	A	I	A	A
Benzyl alcohol	100-51-6	Tech	A	A	A	A	A
Bismuth-II-carbonate aq	5892-10-4	Sat	X	A	X	X	X
Bitumen emulsion		Tech	X	A	X	X	X
Butadiene-1,3 liquid	106-99-0	Tech	A	A	A	A	A
Butane gaseous and liquid (LPG)	106-97-8		X	X	X	X	X
2-Butoxyethanol (Butyl cellosolve)	111-76-2		A	A	A	A	A
Butyl 2-methoxyethyl ether	13343-98-1		I	A	I	I	I
Butyl bromide	109-65-9	Tech	X	A	X	X	X
Butyl carbitol acetate (Diethylene Glycol n-butyl Ether Acetate)	124-17-4		I	A	I	I	I
Butyl methacrylate	97-88-1		I	A	I	I	I
Butyl stearate	98-51-1		A	A	A	A	A
Butyric acid	107-92-6	20	A	A	X	A	A
Butyrolacetone	778649-18-6		I	A	I	I	I
Calcium alkyl salicylate solution	83846-43-9		A	A	X	A	A
Calcium chloride aq	10043-52-4	Sat	I	I	X	I	I
Calcium hypochlorite aq	7778-54-3	20	I	I	X	I	I
Calcium salts aq		Sat	A	A	X	A	A
Camphor oil			I	A	I	I	I
Caprylic acid	124-07-2		A	A	A	A	A
Carbolic oil	84650-03-3		I	A	I	I	I
Carbon disulphide	75-15-0	Tech	X	A	X	X	X
Carbon tetrachloride (Tetrachloromethane)	56-23-5	Tech	I	A	I	I	I
Carbonic acid aq	463-79-6		A	A	X	A	A
Cashew Shell Oil (Urushiol)			A	A	A	A	A
Castor oil	8001-79-4	Tech	A	A	A	A	A
Chlorine water	7782-50-5	Sat	X	X	X	X	X
Chloroacetic acid	79-11-8	Tech	X	X	X	X	X
Chlorobenzene	108-90-7		I	A	I	I	I
Chloroform	67-66-3		X	A	X	X	X
Chloroprene	126-99-8		I	A	X	I	I
2-Chloropropionic acid *	598-78-7		X	X	X	X	X
3-Chloropropionic acid *	107-94-8		X	X	X	X	X
Chrome alum aq	10141-00-1	Sat	A	A	X	A	A
Chromic acid aq	7738-94-5	50	I	A	X	I	I
cis-2-Pentene	627-20-3	Tech	I	A	I	I	I
Citric acid aq	77-92-9	Tech	A	A	X	A	A
Clove oil	97-53-0	Tech	A	A	I	A	A
Copper chloride aq *	7758-89-6	Sat	X	X	X	X	X
Creosote (wood or coaltar)		Tech	A	A	A	A	A
Cresol insomer mixture	1319-77-3	90	A	A	A	A	A
Cumene	98-82-8	Tech	A	A	A	A	A
Cyclohexane	110-82-7	Tech	A	A	A	A	A
Cyclohexanol	108-93-0	Tech	A	A	A	A	A
Cyclohexanone	108-94-1	Tech	I	A	I	I	I
Cyclohexylamine	108-91-8	Tech	A	A	A	A	A
Cyclopentane	287-92-3	Tech	A	A	A	A	A
Decalin	91-17-8	Tech	X	A	X	X	X
Decyl acrylate	2156-96-9	Tech	A	A	A	A	A
Dextrin	9004-53-9	Tech	A	A	A	A	A
Diacetone alcohol	123-42-2	Tech	A	A	A	A	A
Diamylamine	2050-92-2	Tech	A	A	X	A	A
Dibromomethane (Methylene bromide)	74-95-3	Tech	A	A	I	A	A
Dibutyl ether	142-96-1	Tech	A	A	I	A	A
Dibutyl sebacate	109-43-3	Tech	A	A	A	A	A
Dibutylamine	111-92-2	Tech	A	A	I	A	A
Dichloroacetic acid *	79-43-6	Tech	X	X	X	X	X
Dichlorobenzene	95-50-1	Tech	I	A	I	I	I
1,4-Dichlorobutane	110-56-5	Tech	I	A	I	I	I
Dichloroethane 1,2 (Ethylene Dichloride)	107-06-2	Tech	I	A	X	I	I
Dichloroethyl ether	111-44-4	Tech	I	A	I	I	I
Dichloroethylene 1,2 isomer mixture	540-59-0	Tech	I	A	I	I	I
Diesel (Gasoil)	68334-30-5	Tech	A	A	A	A	A
Diethanolamine	111-42-2	Tech	A	A	I	A	A
Diethyl ethanolamine	53404-34-5		A	A	X	A	A
Diethyl ether	60-29-7	Tech	A	A	A	A	A
Diethyl oxalate	95-92-1	Tech	A	A	A	A	A
Diethyl sebacate	110-40-7	Tech	A	A	A	A	A
Diethyl sulphate	64-67-5	Tech	A	A	X	A	A
Diethylamine	109-89-7	Tech	A	A	X	A	A
Diethylaminoethanol	100-37-8	Tech	A	A	I	A	A
Diethylbenzene	25340-17-4	Tech	A	A	A	A	A
Diethylene glycol	111-46-6	Tech	A	A	A	A	A
Diethylene glycol diethyl ether	112-36-7		A	A	A	A	A
Diethylene glycol monobutyl ether	112-34-5		I	A	I	I	I
Diethylene Glycol Monoethyl Ether	111-90-0		A	A	A	A	A
Diethylene glycol monoethyl ether	111-90-0		I	A	I	I	I
Diethylene glycol monoethyl ether acetate	112-15-2		I	A	I	I	I
Diethylene Glycol Monoethyl Ether Acetate (Carbitol acetate)	112-15-2		I	A	I	I	I
Diethylene glycol monomethyl ether	111-77-3		I	A	I	I	I
Diethylene glycol monomethyl ether acetate	629-38-9		I	A	I	I	I
Diethylenetriamine	111-40-0	Tech	A	A	X	A	A
Diisobutyl ketone	108-83-8	Tech	A	A	A	A	A
Diisobutyl phthalate	84-69-5	Tech	I	A	A	I	I
Diisobutylene	25167-70-8		I	A	I	I	I
Diisooctyl adipate (DEHA)	103-23-1	Tech	A	A	A	A	A
Diisooctyl phthalate	27554-26-3		A	A	A	A	A
Diisopropanolamine	110-97-4	Tech	A	A	A	A	A
Diisopropyl ether	108-20-3	Tech	A	A	A	A	A
Diisopropyl ether (Isopropyl ether)	108-20-3	Tech	X	A	X	X	X
Diisopropyl ketone	565-80-0	Tech	A	A	A	A	A
Diisopropylamine	108-18-9	Tech	A	A	A	A	A
Dimethyl ether (DME)	115-10-6	Tech	A	A	I	A	A
Dimethyl formamide	68-12-2	Tech	A	A	A	A	A
Dimethyl phthalate	131-11-3	Tech	A	A	A	A	A
Dimethyl sulfate	77-78-1		A	A	X	A	A
Dimethyl sulphide (DMS)	75-18-3	Tech	A	A	A	A	A
Dimethylamine	124-40-3	Tech	A	A	A	A	A
Dimethylethanolamine (Dimethylaminoethanol DMAE)	108-01-0		A	A	I	A	A
Dinitrobenzenes		Tech	I	A	I	I	I
Dioctyl sebacate	122-62-3	Tech	A	A	A	A	A
Dioctylphalate (Phthalic Acid Dioctyl Ester)	117-81-7	Tech	A	A	A	A	A
Diol aq (Glycols aq)		ALL	A	A	A	A	A
Dipentene (Limonene)	138-86-3	Tech	A	A	A	A	A
Diphenyl ether	101-84-8	Tech	A	A	A	A	A
Diphenyl phthalate	84-62-8	Tech	A	A	A	A	A
Dipropylamine	142-84-7	Tech	A	A	A	A	A
Dipropylene glycol	25265-71-8	Tech	A	A	A	A	A
Dodecanol (Dodecyl alcohol)	112-53-8	Tech	A	A	A	A	A
Dodecyl phenol	9014-92-0	Tech	A	A	A	A	A
Dodecylbenzene	123-01-3	Tech	A	A	A	A	A
Epichlorohydrin	106-89-8		A	A	X	A	A
Ethanol	64-17-5	Tech	A	A	A	A	A
Ethanolamine (Monoethanolamine)	141-43-5		A	A	A	A	A
Ethoxy propanol	52125-53-8		I	A	X	I	I
Ethyl acetate	141-78-6	Tech	I	A	X	I	I
Ethyl acetoacetate EAA (Ethyl aceto acetate)	141-97-9		I	A	X	I	I
Ethyl acrylate	140-88-5	Tech	A	A	A	A	A
Ethyl chloride	75-00-3	Tech	I	A	I	I	I
Ethyl cyclohexane	1678-91-7		A	A	A	A	A
Ethyl formate	109-94-4	Tech	A	A	X	A	A
Ethyl iodide	75-03-6	Tech	I	A	I	I	I
Ethyl methacrylate	97-63-2		I	A	I	I	I
Ethyl oleate	111-62-6	Tech	A	A	A	A	A
Ethyl propyl ether	628-32-0		A	A	A	A	A
Ethyl silicate	78-10-4	Tech	A	A	A	A	A
Ethyl sulfide	540-82-9		A	A	A	A	A
Ethyl tert-butyl ether (ETBE)	637-92-3		A	A	A	A	A
Ethyl vinyl ether (Vinyl ethyl ether)	109-92-2	Tech	I	A	I	I	I
Ethylamine	75-04-7		A	A	I	A	A
Ethylamine (Monoethylamine)	75-04-7	ALL	A	A	I	A	A
Ethylbenzene	100-41-4	Tech	A	A	A	A	A
Ethylene carbonate	96-49-1	Tech	A	A	A	A	A
Ethylene chlorohydrin	107-07-3	Tech	I	A	A	A	A
Ethylene cyanohydrin	109-78-4		I	A	X	I	I
Ethylene diamine	107-15-3	Tech	A	A	A	A	A
Ethylene dibromide (Ethylene bromide)	106-93-4	Tech	A	A	I	A	A
Ethylene glycol (Antifreeze)	107-21-1	Tech	A	A	A	A	A
Ethylene glycol methyl butyl ether	13343-98-1		A	A	I	A	A
Ethylene glycol monobutyl ether	111-76-2	Tech	A	A	A	A	A
Ethylene oxide	75-21-8	Tech	A	A	X	A	A
Fatty acids		Tech	A	A	X	A	A
Formaldehyde aq	50-00-0	45	A	A	X	A	A
Formamide	75-12-7	Tech	I	A	X	I	I
Formic acid	64-18-6		I	A	X	I	I
Furfural	98-01-1	Tech	I	A	X	I	I
Furfuryl alcohol	98-00-0		I	A	X	I	I
Gallic acid aq		ALL	A	A	X	A	A
Gelatine aq	9000-70-8	ALL	A	A	A	A	A
Gluconic acid aq	526-95-4	ALL	A	A	A	A	A
Glucose aq	492-62-6	ALL	A	A	A	A	A
Glycerol (Glycerine)	56-81-5	ALL	A	A	A	A	A
Glycolic acid aq	79-14-1	Sat	X	A	X	X	X
Heavy fuel oil HFO (max 400 cSt viscosity)	68334-33-5	Tech	A	A	A	A	A
Heptanoic acid	111-14-8		A	A	X	A	A
Heptanones		Tech	A	A	A	A	A
Hexafluorosilicic acid (Hydrofluosilicic acid)	16961-83-4	20	A	A	X	A	A
Hexane	110-54-3	Tech	A	A	A	A	A
Hexylamine	111-26-2	Tech	A	A	X	A	A
Hexylene glycol	107-41-5	Tech	A	A	A	A	A
Hydrazine hydrate	7803-57-8		X	A	X	X	X
Hydrochloric acid aq *	7647-01-0	37	X	X	X	X	X
Hydrocyanic acid aq	74-90-8	Sat	X	A	X	X	X
Hydrofluoric acid aq *	7664-39-3	60	X	X	X	X	X
Hydrofluoric acid aq*	7664-39-3	40	X	X	X	X	X
Hydrogen bromide aq (hydrobromic acid aq)*	10035-10-6	50	X	X	X	X	X
Hydrogen chloride	7647-01-0		X	X	X	X	X
Hydrogen cyanide aq (Prussic acid aq)	74-90-8		X	A	X	X	X
Hydrogen peroxide	7722-84-1	90	I	A	X	I	I
Hydrogen sulfide aq *	7783-06-4	Tech	X	X	X	X	X
Iodine solution (Tincture of iodine) *	7553-56-2	Sat	X	X	X	X	X
Isoamyl acetate (Isopentyl acetate)	123-92-2		I	A	I	I	I
Isoamyl alcohol (Isopentyl alcohol)	123-51-3	Tech	A	A	A	A	A
Isoamyl bromide	107-82-4	Tech	X	A	X	X	X
Isoamyl butyrate	106-27-4	Tech	A	A	X	A	A
Isoamyl chloride	107-84-6	Tech	A	A	X	I	I
Isoamyl ether (Isopentyl ether)	544-01-4	Tech	A	A	A	A	A
Isobutyl ether (Ethyl isobutyl ether)	627-02-1		A	A	X	A	A
Isobutanol (Isobutyl alcohol)	78-83-1		A	A	A	A	A
Isobutyl acetate (Isobutyl ester)	110-19-0	Tech	I	A	I	I	I
Isobutyl acrylate	106-63-8	Tech	A	A	A	A	A
Isobutyl bromide	78-77-3	Tech	X	X	X	X	X
Isobutyl chloride	513-36-0		I	A	I	I	I
Isobutyl chloride	513-36-0	Tech	X	X	X	X	X
Isobutyl ether (Diisobutyl ether)	628-55-7	Tech	I	A	I	I	I
Isobutylamine	78-81-9		A	A	I	A	A
Isobutyraldehyde	78-84-2	Tech	X	A	X	X	X
Isodecyl alcohol (Isodecanol)	25339-17-7		A	A	A	A	A
Isopentane	78-78-4	Tech	I	A	I	I	I
Isophorone	78-59-1	Tech	X	A	X	X	X
Isophorone diamine (IPDA)	2855-13-2	Tech	X	A	X	X	X
Isoprene	78-79-5	Tech	A	A	A	A	A
Isopropanolamine (1-Amino-2-propanol)	78-96-6	Tech	A	A	X	A	A
Isopropyl acetate	108-21-4		I	A	I	I	I
Isopropyl alcohol (Isopropanol)	67-63-0	Tech	A	A	A	A	A
Isopropyl chloride	75-29-6	Tech	A	A	X	A	A
Isopropylamine	75-31-0	Tech	A	A	X	A	A
Isovaleraldehyde	590-86-3	Tech	A	A	X	I	I
Kerosene (JET A1)	8008-20-6	Tech	I	A	X	I	I
Lactic acid	50-21-5	20	A	A	X	A	A
Lanolin (Wool wax)			A	A	A	A	A
Lard	61789-99-9		A	A	A	A	A
Latex (Natural rubber emulsion)			A	A	A	A	A
Light fuel oil	68476-30-2	Tech	A	A	A	A	A
Linseed oil	8001-26-1	Tech	A	A	A	A	A
Liquefied Petroleum Gas (LPG) to EN 589	68476-85-7		X	X	X	X	X
Liquid Ammonia	7664-41-7		X	X	X	X	X
1-Butene (LPG)	106-98-9		X	X	X	X	X
Liquid Ethylene	74-85-1		X	X	X	X	X
Liquid carbon dioxide (CO²)	124-38-9		X	X	X	X	X
Propylene (Propene)	115-07-1		X	X	X	X	X
Propane liquid (LPG)	74-98-6		X	X	X	X	X
Lubricating oil		Tech	A	A	A	A	A
Maleic acid aq	110-16-7	Sat	A	A	A	A	A
Mercuric chloride (Mercury(II) chloride) aq *	7487-94-7	Sat	X	X	X	X	X
Mesityl oxide	141-79-7	Tech	A	A	A	A	A
Methacrylic acid (MAA)	79-41-4	Tech	A	A	X	A	A
Methanol	67-56-1	Tech	A	A	A	A	A
Methyl acetate (Acetic acid methyl ester)	79-20-9		I	A	I	I	I
Methyl amine	74-89-5		A	A	I	A	A
Methyl amyl acetate (1,3-Dimethyl butyl acetate)	108-84-9	Tech	I	A	I	I	I
Methyl amyl alcohol (4-Methyl-2-pentanol)	108-11-2		A	A	A	A	A
Methyl butyl ketone MBK (2-Hexanone)	591-78-6		A	A	A	A	A
Methyl cellulose aq	9004-67-5	Tech	A	A	A	A	A
Methyl chloride	74-87-3	Tech	I	A	I	I	I
Methyl ethyl ketone MEK (Butanone)	78-93-3	Tech	I	A	I	I	I
Methyl isobutyl ketone (MIBK)	108-10-1	Tech	I	A	I	I	I
Methyl isobutyl ketone MIBK (Isobutyl methyl ketone)	108-10-1	Tech	A	A	A	A	A
Methyl methacrylate	80-62-6	Tech	I	A	I	I	I
Methyl n-amyl ketone (2-Heptanone)	110-43-0	Tech	A	A	A	A	A
Methylcyclohexane	108-87-2		A	A	A	A	A
Methylene chloride (Dichloromethane)	75-09-2	Tech	I	A	I	I	I
Methyl-tert-butyl ether (MTBE)	1634-04-4		I	A	I	I	I
Molasses			A	A	A	A	A
Mononitrobenzene (Nitrobenzene)	98-95-3		A	A	A	A	A
Morpholine	110-91-8	Tech	A	A	A	A	A
Naphthalene solution	91-20-3	Sat	A	A	A	A	A
Neohexane (2,2-Dimethylbutane)	75-83-2		A	A	A	A	A
n-Heptane	142-82-5		A	A	X	A	A
Nickel chloride aq *	7718-54-9	Sat	X	X	X	X	X
Nitric acid aq	7697-37-2	70	X	I	X	X	X
Nitric acid aq	7697-37-2	30	A	A	X	A	A
Nitric acid aq	7697-37-2	60	I	A	X	I	I
Nitric acid aq	7697-37-2	10	A	A	X	A	A
Nitrobenzene	98-95-3	Tech	A	A	A	A	A
Nitrohydrochloric acid aq (Aqua regia) *	8007-56-5		X	X	X	X	X
Nonane	111-84-2	Tech	A	A	A	A	A
Nonyl alcohol (1-Nonanol)	143-08-8	Tech	A	A	A	A	A
Nonylphenols	25154-52-3	Tech	A	A	X	I	I
n-Pentane	109-66-0		A	A	A	A	A
Octane	111-65-9	Tech	A	A	A	A	A
Octyl acetate	112-14-1	Tech	I	A	I	I	I
Octyl acrylate	2499-59-4		A	A	I	A	A
Oleic acid	112-80-1		A	A	X	A	A
Olive oil	8001-25-0	Tech	X	A	X	X	X
Oxalic acid aq	144-62-7	45	A	A	X	A	A
Palm oil	8002-75-3	Tech	A	A	A	A	A
p-Cymene	99-87-6	Tech	A	A	A	A	A
Pentanal (Valeraldehyde)	110-62-3		I	A	I	I	I
1-Pentanol (Amyl alcohol)	71-41-0	Tech	A	A	A	A	A
3-Pentanone (Diethyl ketone)	96-22-0	Tech	A	A	A	A	A
Pentyl acetate (Amyl acetate)	628-63-7	Tech	I	A	I	I	I
Pentyl chloride-1 (Amyl chloride)	543-59-9	Tech	I	A	I	I	I
Perchloric acid *	7601-90-3	50	X	X	X	X	X
Petrol (Gasoline)	8006-61-9	Tech	A	A	X	A	A
Petrolatum (Vaseline)	8009-03-8	Tech	A	A	A	A	A
Petroleum naphtha (Petroleum ether, Ligroin)	8032-32-4	Tech	X	A	X	X	X
Phenoxyethanol	122-99-6		I	A	I	I	I
Phenylhydrazine	100-63-0		I	A	X	I	I
Phosphoric acid aq	7664-38-2	25	A	A	X	A	A
Phosphoric acid aq	7664-38-2	96	A	A	X	A	A
Phosphorus trichloride *	7719-12-2	Tech	X	X	X	X	X
Phthalic acid aq		50	A	A	X	A	A
Phthalic acid dibutyl ester (Dibutylphthalate)	84-74-2	Tech	A	A	A	A	A
Phthalic Acid Diethyl Ester (Diethyl phthalate)	84-66-2	Tech	A	A	A	A	A
Picric acid aq	88-89-1	1	A	A	X	A	A
Pinene	80-56-8		A	A	A	A	A
Piperylene (1,3-Pentadiene)	504-60-9		I	A	I	I	I
Polyethylene glycol (PEG)	25322-68-3	Tech	A	A	A	A	A
Polyethylene polyamines	68131-73-7		X	A	X	X	X
"4,4' diphenylmethane diisocyanate			A	A	X	A	A
(Methylene diphenyl diisocyanate, MDI)"	9016-87-9	Tech	A	A	X	A	A
Polypropylene glycols (PPG)	25322-69-4	Tech	A	A	A	A	A
Potassium hydroxide aq (Caustic potash aq)	1310-58-3	50	A	A	I	I	I
Propiolactone	57-57-8		I	A	I	I	I
Propionaldehyde (Propanal)	123-38-6		I	A	X	I	I
Propionic acid (Propanoic acid)	79-09-4	Tech	A	A	X	A	A
Propionic acid aq (Propanoic acid aq)	79-09-4	Sat	A	A	X	A	A
Propionic anhydride	123-62-6		I	A	X	I	I
Propylamine	107-10-8		A	A	X	A	A
Propylene glycol monoethyl ether	1569-02-4		A	A	A	A	A
Propylene glycol monomethyl ether	107-98-2		A	A	A	A	A
Propylene oxide	75-56-9	Tech	A	A	X	A	A
Propylene tetramer (1-Dodecene)	6842-15-5		I	A	I	I	I
Propylene trimer (Tripropylene)	13987-01-4		I	A	I	I	I
Pyridine	110-86-1	Tech	A	X	X	A	A
Sea water			A	A	A	A	A
Sewage (Domestic wastewater)			A	A	A	A	A
Silicone oil	63148-58-3		A	A	A	A	A
Soap solutions (Soap water)	68952-95-4		A	A	A	A	A
Sodium chloride aq	7647-14-5	Sat	A	A	X	A	A
Sodium hydrosulfide aq	16721-80-5	Sat	A	A	X	A	A
Sodium hydroxide aq (Caustic soda aq)	1310-73-2	50	A	A	X	A	A
Sodium hypochlorite aq *	7681-52-9	20	X	X	X	X	X
Sodium salt solution aq	75277-39-3	Sat	A	A	X	A	A
Sodium Tetraborate Decahydrate aq (Borax)	1303-96-4	Sat	X	A	X	X	X
Sodium thiosulfate aq	7772-98-7	20	A	A	X	A	A
Starch aq	9005-84-9		A	A	A	A	A
Styrene	100-42-5	Tech	X	A	X	X	X
Sulfuric acid aq	7664-93-9	< 20	A	A	X	A	A
Sulfuric acid aq *	7664-93-9	20-85	X	X	X	X	X
Sulphuric acid aq	7664-93-9	> 85	A	A	X	A	A
Tall oil		Tech	A	A	A	A	A
Tallow (Animal fat)		Tech	A	A	A	A	A
Tannic Acid aq (Tannin)	1401-55-4	10	A	A	X	A	A
Tartaric acid aq	87-69-4		A	A	X	A	A
tert-Butyl chloride	507-20-0		I	A	I	I	I
REMOVED DUPLICATE
Tetrachloroethylene (Perchloroethylene)	127-18-4	Tech	X	A	X	X	X
Tetraethylene glycol	112-60-7	Tech	A	A	A	A	A
Tetraethylene pentamine	112-57-2		A	A	X	A	A
Tetrahydrofuran	109-99-9		X	A	X	X	X
Tetralin (Tetrahydronaphthalene)	119-64-2	Tech	X	A	X	X	X
Titanium tetrachloride (Titanium(IV) chloride) *	7550-45-0		X	X	X	X	X
Toluene	108-88-3	Tech	A	A	I	I	I
Toluene diisocyanate TDI (Toluene-2,4-diisocyanate)	584-84-9	Tech	A	A	I	A	A
trans-2-pentene	646-04-8	Tech	I	A	I	I	I
Transformer oil		Tech	A	A	A	A	A
Tributyl phosphate (TBP)	126-73-8		A	A	A	A	A
Tributylamine (TBA)	102-82-9	Tech	A	A	A	A	A
Trichloroacetic acid aq *	76-03-9	10	X	X	X	X	X
Trichlorobenzene (all isomers)	12002-48-1	Tech	I	A	X	I	I
Trichloroethylene	79-01-6	Tech	X	A	X	X	X
Tricresyl phosphate (TCP) isomer mixture	1330-78-5	Tech	A	A	A	A	A
Tricresyl phosphate TCP (Trictyl phosphate) isomer mixture	1330-78-5		A	A	A	A	A
Triethanolamine	102-71-6		A	A	A	A	A
Triethylamine	121-44-8		A	A	X	A	A
Triethylbenzenes		Tech	A	A	A	A	A
Triethylene glycol	112-27-6	Tech	A	A	A	A	A
Triethylene tetramine (TETA)	112-24-3		A	A	X	A	A
Trimethylpentane 2,2,4 (Isooctane)	540-84-1		I	A	I	I	I
Trioctyl phosphate	1806-54-8		A	A	A	A	A
Tripropylene glycol	24800-44-0		A	A	A	A	A
Tripropylene glycol monomethyl ether isomer mixture	25498-49-1		I	A	I	I	I
Trixylyl phosphate (Trixylenyl phosphate)	25155-23-1	Tech	A	A	A	A	A
Turpentine		Tech	A	A	I	A	A
Urea aq (AdBlue/DEF/ARLA/AUS)	57-13-6	Sat	A	A	A	A	A
Vegetable oils		Tech	A	A	A	A	A
Vinegar			A	A	X	A	A
Vinyl acetate	108-05-4		I	A	I	I	I
Vinyl Chloride Monomer (VCM)	75-01-4		X	X	X	X	X
Vinyl neodecanoate	51000-52-3		I	A	I	I	I
Vinyl toluene	25013-15-4		A	A	A	A	A
Water			A	A	A	A	A
White spirit (Solvent naphtha / mineral spirits)	64742-89-8	Tech	A	A	A	A	A
Xylene isomer mixture	1330-20-7	Tech	I	A	I	I	I
Xylenol	1330-71-6	Tech	A	A	A	A	A

Location

ADDRESS	201, 2F, KTM Bldg, 33, Haeyang-ro 111beon-gil, Yeongdo-gu, Busan, Korea 49007
TEL	+82) 51-972-5167~8
FAX	+82) 51-972-5169

Inner wire	Stainless steel 316L	Lining	PTFE and ECTFE film
Outer cover	Polyester PVC coated Red	Out wire	Stainless steel 316L

Max. elongation	10% on proof pressure
Electrical resistance	≤ 2.5 Ohm/m for sizes less than 50mm ≤ 1.0 Ohm/m for the 50mm size and above sizes
Max. twist	10° p/m	Vacuum range	0.9 bar
Min. burst pressure	5 x working pressure (safety fact 5:1)	Max. flow rate	on request
Max. tensile strength	on request	Pressure losses	on request
Temperature range	-30°C up to +100°C

Bore Diameter / Max. Working Pressure / Bend Radius / Weight
INS	MM	BARS	PSI	INS	MM	KG/M	LB/FT
1	25	14	200	4.0	100	0.8	0.5
1.5	38	14	200	5.5	140	1.2	0.8
2	50	14	200	7.0	180	1.9	1.3
2.5	65	14	200	8.5	205	2.5	1.7
3	75	14	200	11	280	3.0	2.0
Heavy Duty
INS	MM	BARS	PSI	INS	MM	KG/M	LB/FT
4	100	14	200	16.0	405	6.4	4.3
6	150	14	200	20.0	510	10.7	7.2
8	200	14	200	30.0	760	15	10.0
10	250	10.5	150	36.0	915	20.5	13.7

Inner wire	Stainless steel 316L high tensile strength wire	Lining	PTFE and ECTFE film
Reinforcements	Polyester	Outer cover	Fireproof Cover
Out wire	Stainless steel 316L high tensile strength wire

Max. elongation	10% on proofpressure
Electrical resistance	<10 Ohm/m
Max. twist	10° p/m	Vacuum range	0.9 bar
Min. burst pressure	5 x working pressure (safety fact 5:1)	Max. flow rate	on request
Max. tensile strength	on request	Pressure losses	on request
Temperature range	-30°C up to +160°C

Inner wire	polypropylene coated steel	Lining	Polypropylene
Outer cover	Polyester PVC coated black	Out wire	Galvanized or Stainless steel 316L

Inner wire	Stainless steel 316L or PP coated	Lining	Polypropylene and PTFE
Outer cover	Polyester PVC coated Yellow	Out wire	Galvanized steel or Stainless steel 316L

Inner wire	Galvanized steel	Lining	Polypropylene
Outer cover	Polyester PVC coated Blue	Out wire	Galvanized steel

Bore Diameter		Available length	Max. Working Pressure		Bend Radius		Weight
INS	MM	Metres	BARS	PSI	INS	MM	KG/M	LB/FT
1	25	25M	25	367.5	100	100	1.0	0.7
1.5	38	25M	25	367.5	140	250	1.5	1.0
2	50	25M	25	367.5	180	180	2.5	1.7
2.5	65	25M	25	367.5	205	205	3.3	2.2
3	75	25M	25	367.5	280	280	4.5	3.0
4	100	25M	25	367.5	395	395	7.5	5.0
6	100	25M	21	308.7	510	510	13.5	0
8	200	25M	21	308.7	760	760	18.5	12.4
10	250	25M	15	217.5	915	915	25	17.4

Bore Diameter		Max. WP		Weight		Max. lengths
inches	mm	PSI	bar	ibs/ft	kg/m	ft	m
8	200	150	10.5	13.5	20.1	100	30
Min. Bendradius*		Burst pressure*		Pressure losses**		Elongation Twist
inches	mm	PSI	bar	PSiim	bar/m	%	%
35.8	910	1825	125	2.9	0.2	6	1

Diameter × Length (mm)	Initial internal pressure (kPa)	Guaranteed energy absorption (GEA) (KJ)	Reaction force at GEA (KN)	Hull pressure at GEA (kPa)	Safety valve setting pressure (kPa)	Testing pressure (kPa)	Approx. fender body weight (kg)	Approx. weight of net (kg)	Total weight (kg)
500 × 1000	50	6	64	132	-	200	33	39	72
700 × 1500	50	17	137	135	-	200	50	100	150
1000 × 1500	50	32	182	122	-	200	60	110	170
1000 × 2000	50	45	257	132	-	200	77	145	222
1200 × 2000	50	63	297	126	-	200	87	180	267
1350 × 2500	50	102	427	130	-	200	173	240	413
1500 × 3000	50	153	579	132	-	200	211	340	551
1700 × 3000	50	191	639	128	-	200	230	470	700
2000 × 3500	50	308	875	128	-	200	350	630	980
2000 × 4500	50	418	1188	137	-	200	380	660	1040
2500 × 4000	50	663	1381	137	175	250	610	790	1400
2500 × 5500	50	943	2019	148	175	250	786	930	1716
3300 × 4500	50	1175	1884	130	175	250	892	1690	2582
3300 × 6500	50	1814	3015	146	175	250	1410	2050	3460
4500 × 9000	50	4752	5747	146	175	250	3220	3950	7170
4500 × 12,000	50	6473	7984	158	175	250	4500	5600	10100

Bore diameter (mm)	Size			Bend radius (mm)	Weight (kg)		Burst pressure (kgf/cm²·G) (BRAID)
Bore diameter (mm)	Outside diameter	Inside diameter	Thickness	Bend radius (mm)	TUBE	BRAID	Burst pressure (kgf/cm²·G) (BRAID)
25	38.5	27.0	0.30	170	0.48	0.50	170
32	46.5	32.5	0.30	180	0.60	0.63	160
40	54.5	41.0	0.30	200	0.65	0.67	120
50	70.5	53.5	0.30	225	1.30	0.75	120
65	86.0	67.0	0.40	250	1.74	0.80	90
80	100.5	78.5	0.40	275	2.06	1.10	80
100	126.5	103.5	0.40	350	2.90	1.30	55
125	153.5	128.5	0.40	425	3.60	1.60	45
150	180.5	152.0	0.40	500	4.60	1.90	40
200	233.0	203.0	0.50	750	8.00	3.00	35
250	285.0	251.0	0.60	900	11.90	4.20	27
300	336.5	300.5	0.80	1200	12.40	6.00	22

Type	Spiral Type	Diameter	8A ~50A
Material	STS304, STS316, STS316L, STS321	Temperature range	-200 ~ 800°C

JINFLEX-CHEM RED HOSE

Applications

JINFLEX-CHEM HIGH TEMP HOSE

Applications

JINFLEX-CHEM GREEN HOSE

Applications

JINFLEX-VAPOR YELLOW HOSE

Applications

JINFLEX-CHEM WHITE HOSE

Applications

JINFLEX-OIL BLUE HOSE

Applications

JINFLEX-CHEM BLACK HOSE

Applications

METAL HOSE

Annular Type

JINFLEX-LPG WHITE HOSE

Applications

JINFLEX-LNG WHITE HOSE

Applications

JINFLEX-LNG STS WHITE HOSE

Applications

PNEUMATIC RUBBER FENDERS

Applications

FLANGE TYPE

THREADED TYPE

QUICK COUPLING TYPE

Dan Pro~Tec Bend Limiter

HOSEBUN

HOSE HANDLING SLING

AUTHENTICATION

INSURANCE POLICY

Chemical Resistance List

Location

JINFLEX-CHEM RED HOSE

Inner wire/Out wire

Physical properties

Certifications

Jinflex-Chem RED HOSE

JINFLEX-CHEM HIGH TEMP HOSE

Inner wire/Out wire

Physical properties

Certifications

Jinflex-Chem High Temp. HOSE

JINFLEX-CHEM GREEN HOSE

Inner wire/Out wire

Physical properties

Certifications

Jinflex-Chem GREEN HOSE

JINFLEX-CHEM BLACK HOSE

Inner wire/Out wire

Physical properties

Jinflex-Chem BLACK HOSE

JINFLEX-CHEM WHITE HOSE

Inner wire/Out wire

Physical properties

Certifications

Jinflex-Chem WHITE HOSE

JINFLEX-VAPOR YELLOW HOSE

Inner wire/Out wire

Physical properties

Certifications

Jinflex-Vapor YELLOW HOSE

JINFLEX-OIL BLUE HOSE

Inner wire/Out wire

Physical properties

Certifications

Jinflex-Oil BLUE HOSE

JINFLEX-LPG WHITE HOSE

Inner wire/Out wire

Physical properties

Certifications

Jinflex-LPG WHITE HOSE

JINFLEX-LNG WHITE HOSE

Inner wire/Out wire

Physical properties

Certifications

Jinflex-LNG WHITE HOSE

JINFLEX-LNG STS WHITE HOSE

Reliability

JINFLEX-CHEM
RED HOSE

JINFLEX-CHEM
HIGH TEMP HOSE

JINFLEX-CHEM
GREEN HOSE

JINFLEX-VAPOR
YELLOW HOSE

JINFLEX-CHEM
WHITE HOSE

JINFLEX-OIL
BLUE HOSE

JINFLEX-CHEM
BLACK HOSE

JINFLEX-LPG
WHITE HOSE

JINFLEX-LNG
WHITE HOSE

JINFLEX-LNG STS
WHITE HOSE

PNEUMATIC
RUBBER FENDERS

Dan Pro~Tec
Bend Limiter
